35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes

China 35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes supplier
35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes supplier 35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes supplier 35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes supplier 35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes supplier

Large Image :  35kV Application Snap-In Silicone Rubber Bird-Proof Cable Insulation Cover Tubes

Product Details:

Place of Origin: China
Brand Name: CHINO
Model Number: HV

Payment & Shipping Terms:

Minimum Order Quantity: 50 Meters
Price: USD2 per meter
Packaging Details: Standard Exporting Package
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 meters per month
Contact Now
Detailed Product Description
Material: High-Class Silicone Rubber Color: Red, Green, Yellow, Black, White
Voltage Class: 10~220kV

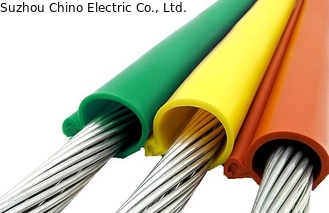

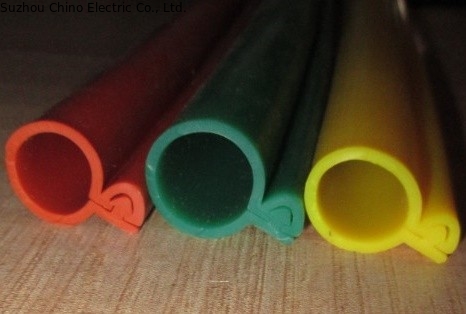

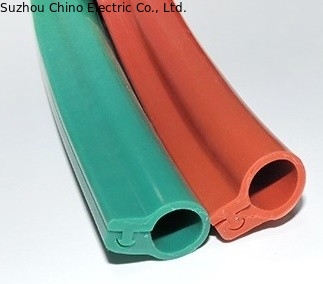

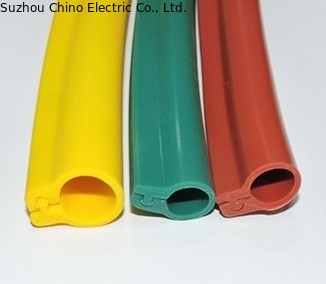

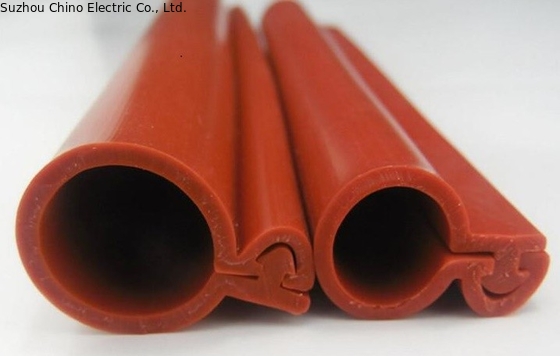

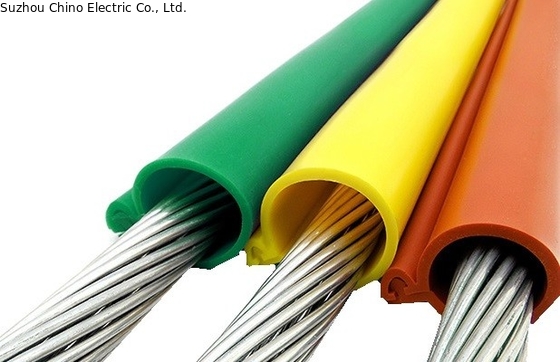

High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



High Voltage Application Snap-In Type Silicone Rubber Bird-Proof Cable Insulating Cover Tube



Performance Properties:



1. Shore Hardness (HA): 65 (≥50)



2. Tensile Strength (Mpa): 15 (≥9)



3. Elongation Ratio %: 482 (≥400)



Hot Air Aging Test @ (100℃ × 168h)



4. Hardness Change: 3.5 (-5~+10)



5. Tensile Strength Change Rate %: 12.7 (<25)



6. Elongation Ratio Change Rate %: 18 (<40)



Hot Air Aging Test @ (70℃ × 48h)



7. Recovery Rate after Hot Air Aging (Da) %: 31.5 (3 Class, 50% Da≤60%)



8. Shore Hardness Change (-20℃~0℃): 5.1 (≤10)



9. Shore Hardness Change (0℃~23℃): 0.2 (≤10)



10. Shore Hardness Change (23℃~70℃): 2.7 (≤10)



11. Low Temperature Brittleness Temperature (-40℃): NO Brittle @-40℃



12. High Temperature Brittleness Temperature (220℃): NO Brittle @220℃



13. Volume Resistivity Ω·cm: 1.5*10∧13Ω·cm (≥1.1*10∧13Ω·cm)



14. Surface Resistivity Ω: 1.2 (<2.0)



15. Puncture Strength KV/mm: 10~220KV/mm



16. Ozone Aging Resistance Properties (500pphm Elongation 20% @40℃ × 48h): NO Fracturing on Surface
